Ventilschaftdichtungen

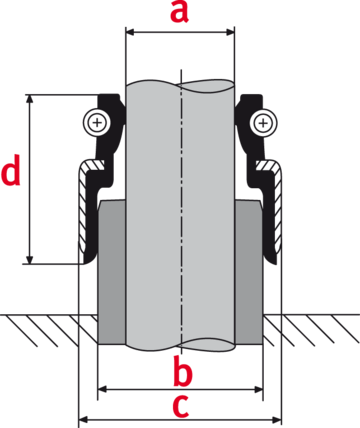

Abmessungen Schaft Ø (a) Ventilsitz (b) Außen Ø (c) Höhe (d) Elring-Nr. Werkstoff/Bauart
5x7.8/11x8 5 7.8 11 8 476.691 FPM
5x7.8/11x10.3 5 7.8 11 10.3 308.610 FPM
5x7.8/30x19.5 5 7.8 30 19.5 392.510 FPM
5x7.8/23x15.5 5 7.8 23 15.5 061.760 FPM
5x7.8/11.2x9.7 5 7.8 11.2 9.7 302.890 FPM
5x8.6/21.5x15.7 5 8.6 21.5 15.7 333.120 FPM
5x9/11.4x11.5 5 9 11.4 11.5 904.900 FPM
5x9/24.2x14 5 9 24.2 14 582.530 FPM
5x10/21.5x16 5 10 21.5 16 539.420 FPM
5x10/23.4x15.5 5 10 23.4 15.5 506.550 FPM
5.5x11/24.4x19.7 5 11 24.4 19.7 429.320 FPM
5.5x8.3/11.5x8 5.5 8.3 11.5 8 522.930 FPM
5.5x9/11x9.5 5.5 9 11 9.5 166.190 FPM
5.5x9.5/11.8x11 5.5 9.5 11.8 11 020.020 ACM
5.5x9.5/18.1x13.8 5.5 9.5 18.1 13.8 262.650 FPM
5.5x9.8/12.9x12 5.5 9.8 12.9 12 342.000 FPM
5.5x10/12.25x8 5.5 10 12.25 8 439.530 FPM
5.5x10.8/25x18 5.5 10.8 25 18 026.650 FPM
5.5x10.8/25x18 5.5 10.8 25 18 026.680 FPM
5.5x11/13x10 5.5 11 13 10 130.860 ACM
5.5x11/13x10 5.5 11 13 10 130.560 ACM
5.5x11/28x16.5 5.5 11 28 17 151.810 FPM
5.5x12/23x14.5 5.5 12 23 14.5 167.270 FPM
5.5x11/23x15.7 5.5 11 23 15.7 222.800 FPM
5.5x11/24.4x19.7 5.5 11 24.4 19.7 429.320 FPM
5.5x11/24.4x20 5.5 11 24.4 20 597.360 FPM
7x11/14.4x9.5 7 11 14 9.5 472.240 FPM
6x8.8/12.1x10.9 6 8.8 12.1 10.9 250.950 FPM
6x8.5/25x16.7 6 8.5 25 16.7 574.330 FPM
6x8.8/11.4x9.5 6 8.8 11.4 9.5 069.630 FPM
6x8.8/12.2x9.7 6 8.8 12.2 9.7 403.730 FPM
6x8.8/29x17.5 6 8.8 29 17.5 090.970 FPM
6x9.2/23x17.7 6 9.2 23 17.7 027.750 FPM
6x9.8/12.6x11.1 6 9.8 12.6 11.1 012.410 ACM
6x9.8/12.7x11.3 6 9.8 12.7 11.3 022.190 ACM
6x8.8/12.2x9.3 6 8.8 12.2 9.3 724.590 FPM
6x9.8/13.2x9.5 6 9.8 13.2 9.5 369.890 FPM
6x10/23x16 6 10 23 16 198.770 FPM
6x10/25x16 6 10 25 16 007.030 FPM
6x10/26.5x17.1 6 10 26.5 17.1 149.360 FPM
6x10/19.6x21.5 6 10 19.6 21.5 136.940 FPM
6x10.7/13.6x12.4 6 10.7 13.6 12.4 550.850 FPM
6x10.8/13.5x10.6 6 10.8 13.5 10.6 019.140 ACM
6x10.8/13.6x10.3 6 10.8 13.6 10.3 707.170 FPM
6x10.8/13.6x10.3 6 10.8 13.6 10.3 707.180 FPM
6x10.8/13.6x10.3 6 10.8 13.6 10.3 864.110 FPM
6x10.8/13.7x10.3 6 10.8 13.7 10.3 478.410 FPM
6x10.8/23x16.2 6 10.8 23 16.2 026.670 FPM
6x10.8/23x16.2 6 10.8 23 16.2 026.700 FPM
6x10.9/28.2x20 6 10.9 28.2 20 773.390 FPM
6x11/23.4x15.5 6 11 23.4 15.5 332.330 FPM
6x11/26.5x16 6 11 26.5 16 165.560 FPM
6x11/27x19.4 6 11 27 19.4 440.140 FPM
6x11.5/23.3x19.5 6 11.5 23.3 19.5 157.560 FPM
6x12/24x20 6 12 24 20 127.510 FPM
6x12/24x20 6 12 24 20 127.490 FPM
6x12.4/25.3x18.7 6 12.4 25.3 18.7 026.630 FPM
6x11/27x17.8 6 11 27 17.8 026.640 FPM
6.3x11.6/16x10.5 6.3 11.6 16 10.5 553.417 FPM
6.6x 8.8/12.9x9.5 6.6 8.8 12.9 9.5 763.802 PTFE
7x9.5/13.5x8.5 7 9.5 13.5 8.5 830.489 FPM
7x9.8/13.2x9 7 9.8 13.2 9 393.890 FPM
7x9.8/13.2x10 7 9.8 13.2 10 701.289 FPM
7x10.8/13.9x11.2 7 10.8 13.9 11.2 012.150 ACM
7x11.1/16x9.8 7 11.1 16 9.8 586.693 FPM
7x11.5/14x9.8 7 11.5 14 9.8 577.300 FPM
7x11.5/16x12.7 7 11.5 16 12.7 112.593 ACM
7x11.8/14.7x11.8 7 11.8 14.7 11.8 069.440 FPM
7x11.9/13.2x15 7 11.9 13.2 15 069.550 ACM
7x11.9/14.5x12.9 7 11.9 14.5 12.9 001.850 FPM
7x11/14.4x9.5 7 11 14.4 9.5 766.615 FPM
7x12/13.5x9.5 7 12 13.5 9.5 010.290 ACM
7x12/13.5x9.5 7 12 13.5 9.5 010.300 ACM
7x12/15x11.9 7 12 15 11.9 019.790 ACM
7x12/24.2x18.8 7 12 24.2 18.8 027.740 FPM
7x12/25x19.2 7 12 25 19.2 225.780 FPM
7x9.8/29x16 7 9.8 29 16 138.310 FPM
7x12x2.5 7 0 12 2.5 702.056 ACM
7x18.5/21.5x15 7 18.5 21.5 15 173.053 NBR
7.2x11.6/16x10 7.2 11.6 16 10 553.425 FPM
7.2x19/22x13 7.2 19 22 13 049.492 ACM
7.5x11.5x2 7.5 0 11.5 2 702.790 VMQ
7.8x14.3x4 7.8 0 14.3 4 020.915 ACM
8x10.5/13x9.5 8 10.5 13 9.5 195.952 PTFE
8x12.1/16x8.8 8 12.1 16 8.8 762.911 ACM
8x10.8/14x10 8 10.8 14 10 197.378 ACM
8x10.8/14.2x10 8 10.8 14.2 10.4 294.110 FPM
8x10.8/14.2x10.4 8 10.8 14.2 10.4 553.190 FPM
8x11.5/14.2x10 8 11.5 14.2 10 251.510 FPM
8x12/14.4x14.2 8 12 14.4 14.2 021.080 ACM
8x12/15.2x9.5 8 12 15.2 9.5 143.930 FPM
8x12/15.3x8.8 8 12 15.3 8.8 348.295 FPM
8x12/15.4x9.5 8 12 15.4 9.5 104.380 FPM
8x12/15.4x9.5 8 12 15.4 9.5 761.389 FPM
8x12/15.4x10.5 8 12 15.4 10.5 574.190 FPM
8x12/15.5x9.5 8 12 15.5 9.5 206.954 ACM
8x12/15.5x12.2 8 12 15.5 12.2 562.645 FPM
8x12/16.6x14.6 8 12 16.6 14.6 022.180 ACM
8x12/17x11 8 12 17 11 582.425 FPM
7.2x12/17.5x11 7.2 12 17.5 11 763.969 FPM
8x12/34x16.4 8 12 34 16.4 405.990 FPM
8x12.1/16x8.8 8 12.1 16 8.8 762.911 ACM
8x12.7/15.3x9.5 8 12.7 15.3 9.5 010.250 ACM
8x12.8/15.5x13.1 8 12.8 15.5 13.1 010.270 ACM
8x13.9/15.2x12.9 8 13.9 15.2 12.9 523.917 FPM
8x14.3/17.5x12.5 8 14.3 17.5 12.5 590.630 FPM
8x14/18x13.6 8 14 18 13.6 187.666 FPM
8.2x12/16.1x11 8.2 12 16.1 11 460.710 FPM
8.2x12/17.5x10.5 8.2 12 17.5 10.5 310.751 FPM
9x12/15x11.6 9 12 15 11.6 567.401 FPM
9x12/15x13 9 12 15 13 253.693 PTFE
9x12/15.4x11 9 12 15.4 11 814.882 FPM
9x12.9/16x11.3 9 12.9 16 11.3 596.981 FPM
9x13/16.4x10 9 13 16.4 10 558.910 FPM
9x13.4/17.5x12.7 9 13.4 17.5 12.7 112.585 ACM
9x13.8x5.4 9 0 13.8 5.4 021.288 VMQ
9x14.3/17x14.2 9 14.3 17 14.2 702.951 FPM
9x14.5/29x23.4 9 14.5 29 23.4 467.880 FPM
9x14.6/19x15 9 14.6 19 15 325.813 ACM
9x14.6/19x15 9 14.6 19 15 577.898 FPM
9x15/17.5x13.5 9 15 17.5 13.5 732.120 FPM
9.3x11.2/14.7x12 9.3 11.2 14.7 12 022.233 PTFE
9.3x13.1x12 9.3 0 13.1 12 089.087 ACM
9.5x15.5/19.5x12.4 9.5 15.5 19.5 12.4 550.600 FPM
10x12.8/16.2x9.5 10 12.8 16.2 9.5 125.771 FPM
10x12.8/16.2x10 10 12.8 16.2 10 125.770 FPM
10x12.8/16.5x10.9 10 12.8 16.5 10.9 242.510 FPM
10x13/17.5x10.8 10 13 17.5 10.8 558.810 FPM
10x14/19x13 10 14 19 13 277.338 ACM
10x14.6/19x14 10 14.6 19 14 468.045 ACM
10x14.6/19x15 10 14.6 19 15 577.901 FPM
10.2x13/16.1x12 10.2 13 16.1 12 316.474 FPM
11x13/16x12 11 13 16 12 253.685 PTFE
11x14/18x14 11 14 18 14 513.723 FPM
12x16/20x15 12 16 20 15 562.298 FPM
12x16/20x15 12 16 20 15 193.658 ACM
12x16/20.5x15.1 12 16 20.5 15.1 453.650 FPM
